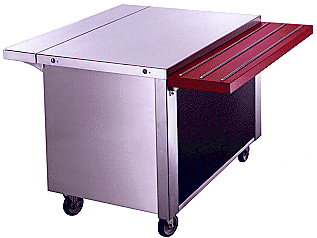

MOBILE FLAT TOP COUNTER

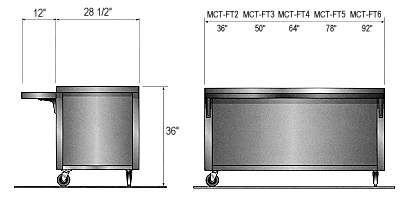

| MODEL | LENGTH | WEIGHT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STANDARD FEATURES
| |
| FRAME : Featuring frameless construction utilizing 16 gauge stainless steel formed end panels with top and bottom horizontal members of 16 gauge stainless steel. | TRAY SLIDE: DuPont Corian® ½" thick solid surface material mounted on fold down brackets. |
| CASTERS: Heavy duty 5" diameter plate casters with polyurethane tires. Brake models to be supplied on rear corners of cabinet. | UNDERSHELF: 18 gauge stainless steel with 18" high ends and 6" high back. Undershelf is held back 6" from front panel forming a utility chase for plumbing and electrical services. |
| TOP: 14 gauge stainless steel with 2" turndowns on all sides and sound deadening applied between top and frame. | TRAY SLIDE: DuPont Corian® ½" thick solid surface material mounted on fold down brackets. |
| FRONT BODY PANEL: DuPont Corian® ¼" thick solid surface front panel. | .STAINLESS STEEL SPECIFICATIONS: All stainless steel to be type 304 with number 4 finish. |
|
OPTIONAL FEATURES
| |
| FRONT BODY PANEL: Plastic laminate as
selected over galvanized metal panel.
FRONT BODY PANEL: 18 gauge stainless steel panel. |
SERVING SHELF/BREATH PROTECTOR: 16 gauge stainless steel serving shelf with 1½" turndown on all sides. Supports post of 1¼" square 18 gauge stainless steel tubing. Pre-wired fluorescent light fixture with safety shields and toggle switch control panel. ¼" thick tempered plate glass breath protector with polished edges. |
| TRAY SLIDE: 14 gauge stainless steel
with s/s runners on fold down brackets.
TRAY SLIDE: Plastic laminate tray slide with stainless steel runners on fold down bracket. TRAY SLIDE: Fixed tray slide. |
DISPLAY SHELF/BREATH PROTECTOR: Two tier 16 gauge stainless steel serving shelf with 1½" turndown on all sides. Supports post of 1¼" square 18 gauge stainless steel tubing. Pre-wired fluorescent light fixture with safety shields and toggle switch control panel. ¼" thick tempered plate glass breath protector with polished edges. |
| WORK SHELF: 16 gauge stainless steel 8" wide plate shelf mounted at rear on fold down brackets | BUFFET SERVICE: Dual service breath protector, tray slide, and front panels |
| PLATE SHELF: 18 gauge stainless steel 8" wide plate shelf mounted at rear below work shelf. | ADDITIONAL WARRANTY: Additional 12 month limited warranty on parts and labor |
| LEGS: 6" adjustable stainless steel legs in lieu of casters. | For options/accessories/modifications not shown, please contact the factory. |
| |
